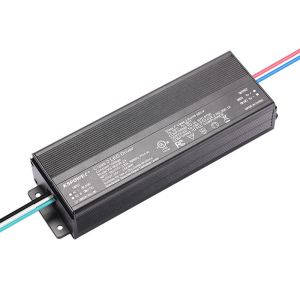

Triac Dimmable Waterproof Green Independent Led Light Driver
FEATURES:
− Universal AC input voltage 100-277VAC
− Efficiency up to 90%
− Built-in active PFC function
− Single channel & constant voltage mode and PWM style output
− Protection: OCP, OVP, SCP, OTP
− Limited Power Source
− UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

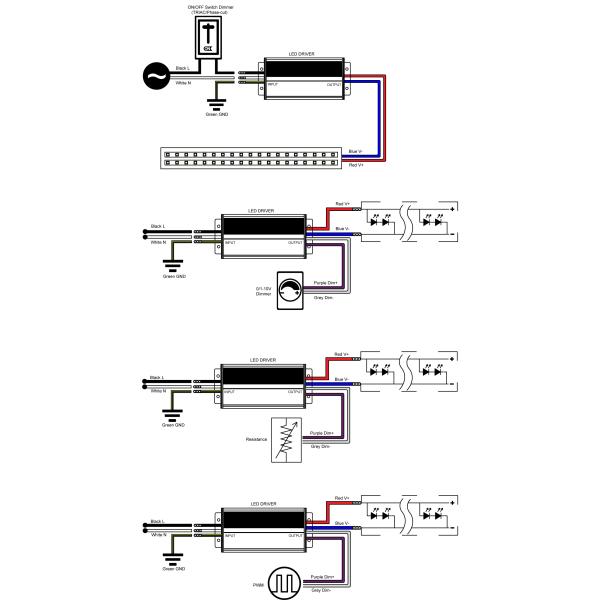

− Function options:
1. Non-dimmable
2. Triac/Phase-cut Dimmable
3. 4 in 1 dimmable (0-10V,1-10V,PWM,resistance)
4. 5 in 1 dimmable (0-10V,1-10V,TRIAC,PWM,resistance)
− Typical lifetime > 50000 hours
− 5 years warranty
− Available with or without integrated Junction Box
− IP65 Rated Enclosure for Indoor and Outdoor Use
− Wiring Compartments with Knock-Outs for Clean and Easy Installation
Specification
| Input Voltage | 100~277V AC 47~63Hz |
| Power Factor | PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC, full load |
| Output Voltage | 12VDC | 24VDC | 36VDC | 48VDC |
| Rated Current | A | A | A | A |
| Rated Power | 40-320W |
| Ripple & Noise (max.) | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p |
| Dimenion | 258*68*41mm(L*W*H) |
OUR SERVICES
our sample delivery time is 3 days.
our warranty is 3 years.
our product defect rate is 3%.More than 3% of defective products will be refilled.
OEM&ODM, any your custo mized lightings we can help you to design and put into product.
Distributoership are offered for your unique design and some our current models,Protection of your sales area, ideas of design and all your private informatio.
Your inquiry related to our products or prices will be replied in 24hrs.Well-trained and experienced staffs to answer all your enquires in fluent English.
FAQ
Q: Are you the MANUFACTURER or Trader?
A: we are both the factory and trade company for switching power supply, as well as other products, the products are of high quality with most reasonable price.
Q: What is your MOQ?
A: the MOQ can be only 1pc, we suggest for wholesaler order for smaller order online, welcome to contact us for details.
Q: What is the LEAD TIME?
A: the lead time is usually 2-20 days, it depends on your exact product and quantity.
Q: Do you accept OEM?
A: Yes, it is highly welcome.
