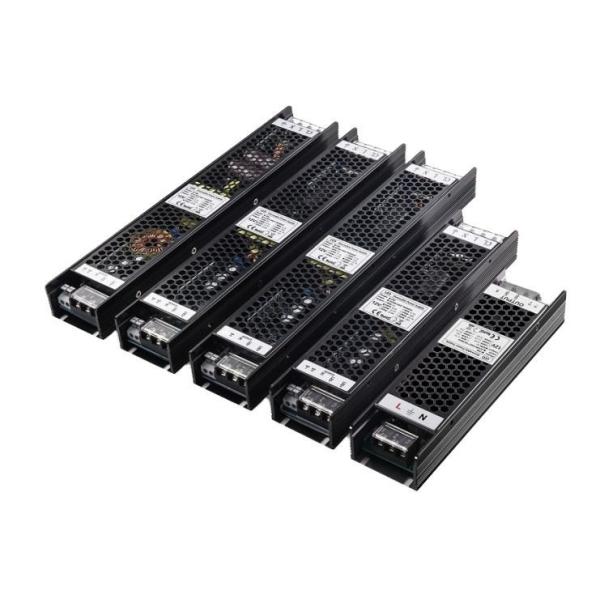

IP20 250W Dimming LED Strip Module Power Supply 10.4 A Triac Dimmable
250W Dimming LED Strip Module Power Supply 10.4A Triac Dimmable and 0 / 1 -10V Dimmable LED Driver 24VDC
1). Selectable constant voltage /constant current output upon request.
2). Fully-isolated IP20 for indoor application.
3). Short-circuit, over-current and over -voltage protection.
5). 3 years warranty.
6). CE/ RoHS/SAA /cETLus/TUV/3C certified.
7). Customized logo acceptable
8). Dimming range 5%-100%
9). PF>0.9 & Efficiency>85%.
10). Smooth dimming, flicker free.
11). Small quantity acceptable for your testing purpose.
12). Factory direct to ensure best price and 8-15 days' delivery.
Kind note:
Metal housing LED power supply for indoor use. Also known as industrial power supplies, these transformers are suitable for up to 24 hours of use. Suitable for 12V or 24V led strip operation. It is important that the LED power supply is not overloaded, up to a
maximum of 80-85% of the rated power. The power supply has a terminal block through which it can be connected to both the mains
and the LED strip.
Specification
| Product Name: | 250W Dimming LED Strip Module Power Supply | Output Frequency: | 50/60Hz |
| Output Type: | constant voltage | Output Power: | 250W Max. |
| Input Voltage: | 100-220V | housing: | metal |
| Output Voltage: | 12V/24V | Warranty: | 3 years |
| Application: | LED Lighting | Certificate: | CE, RoHS, ETL, SAA |
| Efficiency: | 0.86 | Size: | 287*50*30mm |
| Protections: | Short Circuit Overtemp Overload Overvolt | Weight: | 440g |
Slim type design so as to install easier.
Universal AC input 110v & 220v optional
Compatible with 0-10V, 1-10V, TRIAC control system
Dimmable,0-10V means dimming effect from 0% to 100%
Constant voltage.
IP 20.
Short circuit, overload and over current protected.
Internal cooler./ Super cooling design, long life.
100% full strength test.
High reliability.
Working temperature/ humidity: -10℃~+50℃,20~60%RH
Storage temperature/ humidity: -20~+85℃/10~95%RH
Stable output voltage and output current, flicker free. Stable dimming effects, no shaking, sensitive and smooth.
FAQ
Q1. Can I have a sample order for LED Power Supply?
A: Yes, sample order for testing and reviewing our quality is available. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples order: 1-3 days, mass production time are normally in 25days after deposit.
Q3. What is your MOQ of the LED power supply?
A: 50pcs or 100pcs for trial order.
Q4:How many year warranty of your Led driver?
A: Two years.
Q5: Is OEM/ODM available ?
A:1.print logo on the sickers or LED powers.
2.Any request on the power supply, we can help you to design and put it into production.
Q6: What kinds of certificate we achieve?
A:CE, ROHS, FCC.
Q7: How do you ship the goods?
A:By airline or by sea.
Q8: How do you deal with the defective goods?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send new power supply with new order together. For defective batch products, please send the pictures or videos for them, if possible, we can discuss the solution according to real situation.
