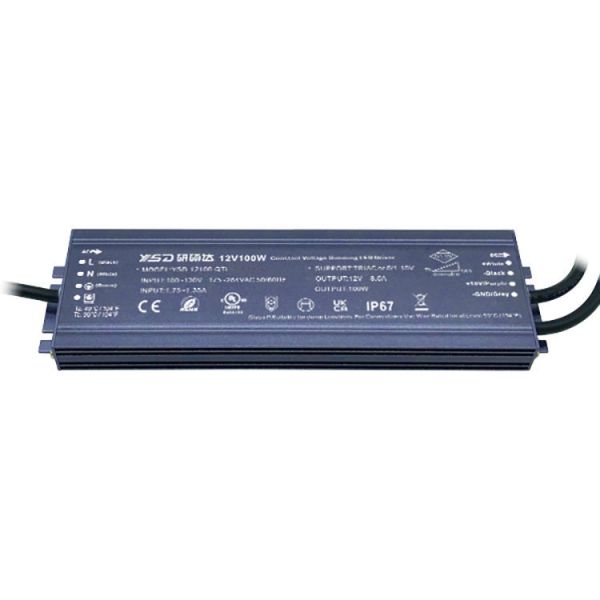

Led Driver 24v 12v 100w 200w 300w Led Driver Dimmable Triac Outdoor Waterproof Dimming Led Power Supply
We designed their PWM series dimmable AC/DC class 2 power supply to be ideal for LED strip lighting applications. Featured is a constant voltage output PWM mode (1.47kHz) electrically engineered to keep your LED strip color and brightness consistent. The unit is equipped with a 3-in-1 dimming function that varies the duty cycle of the output offering three different dimming options: 0-10V, PWM or Resistance (more on dimming below).
The rugged plastic housing is a class 2 design that is IP67 rated (suitable for dry, damp and wet locations) with a rectangular 'butterstick' form-factor. Backed by a 5-year warranty, it is engineered and built to last and boasts a lifetime over 50,000 hours.
Specification
| Output Power: | <500W | weight: | 0.52kg |
| Output Type: | Single | size: | 178*62*16.8mm |
| Input Voltage: | 100-277v, 220V | Certification: | CE RoHS |
| Output Voltage: | 12V 24V | Efficiency: | >92% |
| Output Frequency: | 50~60Hz | Protection: | Short circuit /Overload/Overtemperature/Over voltage |
| Output Current: | 8.3A | Waterproof grade: | IP67 |
| Type: | Constant Voltage | Application: | LED Strip |
150W 12V 12.5A DC Constant Voltage Triac,0-10V,touch sensitive time delay switch,PWM,Resistance Dimmable LED Power Supply With CE RoHS FCC.It is compatible with both forward phase(leading edge,triac) and reverse phase(electronic low-voltage,ELV,and trailing edge) AC dimmers,including higher end lighting controls.They are also compatible with low-voltage PWM dimmers and RGB color controllers.
Why choose us?
10 years' experience in switching power supply manufacturing and developing.
3000 customers, including 2000 in China mainland, 1000 in overseas markets all over the world;
100% full load brun-in test
High quality with competitive price
Real Factory, OEM and ODM are welcome.
Delivery within 2 weeks for bulk order, within 3 days for general small batch order
2 years warranty
Complete certification, UL,SAA,KC,CE, RoHS, EMC, FCC etc.
100% full load burn-in test.
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2 . What can you buy from us?
LED Power Supply,LED Driver,Dimmable LED Driver
3 . Why should you buy from us not from other suppliers?
our are high-tech enterprise which integrates production, R&D and sales of LED power supply,Master Power has 11 independent intellectual property rights patents, product passed CE ROHS BIS UL ETL SAA CB TUV IEC.
4. What services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
Product Tags:
|
|
Triac Dimming LED Power Supply LED Driver 24V 12V 100W 200W 300W LED Driver Images
|
