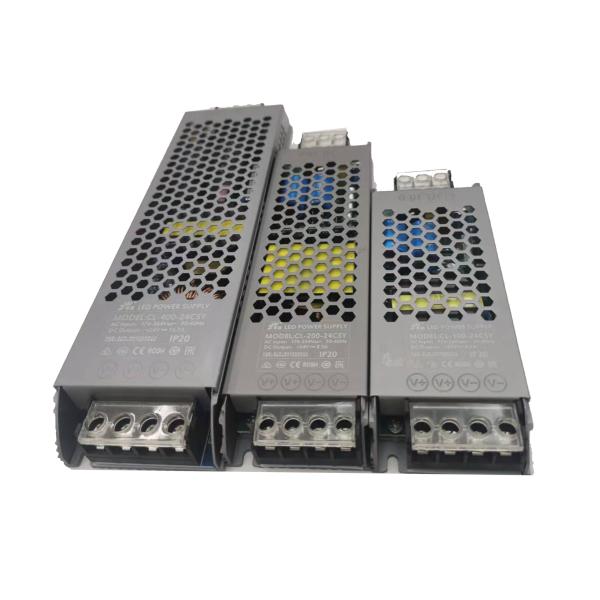

Strip Converter Adapters Cable Transformer Regul Dimmabl Edfa Dc 5A 30Amp 12Volt 48V400W Led Driver Power Supply
We designed their PWM series dimmable AC/DC class 2 power supply to be ideal for LED strip lighting applications. Featured is a constant voltage output PWM mode (1.47kHz) electrically engineered to keep your LED strip color and brightness consistent. The unit is equipped with a 3-in-1 dimming function that varies the duty cycle of the output offering three different dimming options: 0-10V, PWM or Resistance (more on dimming below).
The rugged plastic housing is a class 2 design that is IP67 rated (suitable for dry, damp and wet locations) with a rectangular 'butterstick' form-factor. Backed by a 5-year warranty, it is engineered and built to last and boasts a lifetime over 50,000 hours.
Specification
| Output Power: | 300-400W | Output Current: | 8.33A |
| Output Type: | Single, Single | Warranty: | 2 Years |
| Input Voltage: | 220, 100-240v, 100-240VAC | Type: | Constant Voltage Power |
| Output Voltage: | 48V | Certification: | CE RoHS ISO9001 FCC |
| Output Frequency: | 52/60HZ | Protections: | Short Circuit Overload Overvolt Overtemp |
| Feature: | Small volume,low weight,high efficiency | Capacitance: | More Professional ,More Durable,More Reliable |
| Type 2: | Low Power Consumption | Application: | LED strip light,LED cabinet lights,Home Improvement |
How to choose the appropriate power unit:
1. Choose the Series and length of strip light you will be installing - We will use 5 feet of the Architectural Series Strip Light as an example
2. Keep in mind the recommended maximum run lengths of the lights due to voltage drop - The Architectural Series has a maximum 32ft run length in series. You can hook up more than 32ft to a power supply by installing the runs in parallel
3. Check if the input of your strip is 12V or 24V DC - The Architectural series requires a 24V input
4. Each strip consumes a certain amount of power per foot (watts/ft). That number can be found on the product page of the strip light - The Architectural Series uses 5.12w/ft
5. Calculate the estimated power usage based on length of the light strip - 5.12W/ft x 5ft = 26.5 watts
6. When choosing a power unit, you need to make sure you are only using 80% of the rated power maximum to increase longevity of the power supply. To calculate the power supply, divide the wattage of the strip by 0.8 - Our continued example would be 26.5W/0.8 = 33.12W minimum rated power supply
7. Looking at the available options choose a power supply equal or greater than the number above - In this example, looking from the available options, you would choose a 24V 60W 2.5A power supply [SKU: 24-DPS-2.5]
8. If you are still not certain, or need a second pair of eyes on your setup, we’re always available to help with this part! Contact us.
Why choose us?
10 years' experience in switching power supply manufacturing and developing.
3000 customers, including 2000 in China mainland, 1000 in overseas markets all over the world;
100% full load brun-in test
High quality with competitive price
Real Factory, OEM and ODM are welcome.
Delivery within 2 weeks for bulk order, within 3 days for general small batch order
2 years warranty
Complete certification, UL,SAA,KC,CE, RoHS, EMC, FCC etc.
100% full load burn-in test.
FAQ
1. Who we are?
we are OEM & ODM manufacturer in SHENZHEN.We are a professional power supply manufacturer with high reputation in this field.
2. How we control the quality?
We make series of technical test before delivery, including aging test of 8 hours.
3. Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
4. What about the production capacity?
2 days for samples order under 10pcs, 15 days for an order less than 10000pcs.
5. OEM and ODM acceptable?
Yes, we accept both.
6:How many year warranty of your Led driver?
Two years.
7:What is your MOQ of switch power?
Yes,we have CE,RoHS,CCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.
