Constant Voltage 24V 250W Dimmable Driver Triac & 0-10V LED Power Supply 24v
Dimmable LED Power Supplies
These are Dimmable LED Power Supplies that can dim any 12VDC or 24VDC Constant Voltage LED Light using a low voltage magnetic dimmer. With a variety of compatible low voltage magnetic dimmers available this product is perfect for LED dimming in the most high scale applications. Newly added are two types capable of being dimmed from a standard Triac style dimmer. The Triac dimmable power supplies are smaller and more compact than the large LVM style power supplies.
Specification
| Product Name: | LED DRIVER(switching Power Supply) | Application: | LED Products |
| Output Power: | 51 - 100W | Warranty: | 2 Years |
| Output Type: | - | Protections: | Short Circuit Overtemp Overload Overvolt |
| Input Voltage: | 170-264V, 170-264V | Size: | 287*50*30mm |
| Output Voltage: | 24V, 24V | Weight: | 470g |
| Output Frequency: | N/A | Material: | Metal Shell |
| Output Current: | 10.4A | Output current: | 10.4A |

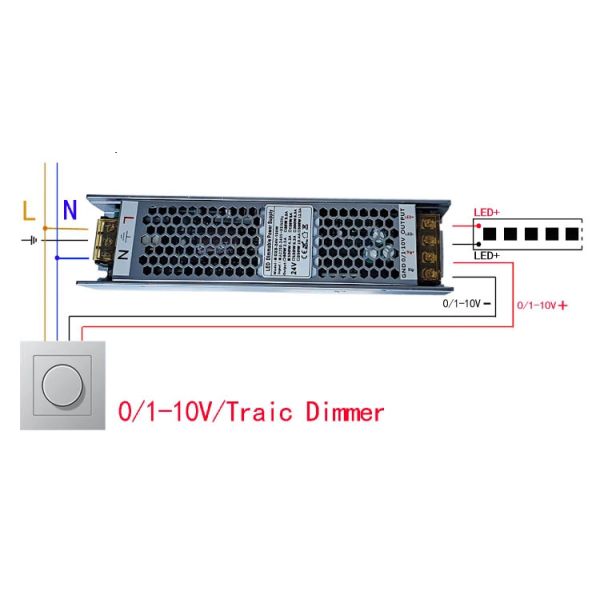

250W Dimming LED Strip Module Power Supply 10.4A Triac Dimmable and 0 / 1 -10V Dimmable LED Driver 24VDC
1). Selectable constant voltage /constant current output upon request.
2). Fully-isolated IP20 for indoor application.
3). Short-circuit, over-current and over -voltage protection.
5). 3 years warranty.
6). CE/ RoHS/SAA /cETLus/TUV/3C certified.
7). Customized logo acceptable
8). Dimming range 5%-100%
9). PF>0.9 & Efficiency>85%.
10). Smooth dimming, flicker free.
11). Small quantity acceptable for your testing purpose.
12). Factory direct to ensure best price and 8-15 days' delivery.
Which power supply do I need for my project?
1. Choose the Series and length of strip light you will be installing - We will use 5 feet of the Architectural Series Strip Light as an example
2. Keep in mind the recommended maximum run lengths of the lights due to voltage drop - The Architectural Series has a maximum 32ft run length in series. You can hook up more than 32ft to a power supply by installing the runs in parallel
3. Check if the input of your strip is 12V or 24V DC - The Architectural series requires a 24V input
4. Each strip consumes a certain amount of power per foot (watts/ft). That number can be found on the product page of the strip light - The Architectural Series uses 5.12w/ft
5. Calculate the estimated power usage based on length of the light strip - 5.12W/ft x 5ft = 26.5 watts
6. When choosing a power unit, you need to make sure you are only using 80% of the rated power maximum to increase longevity of the power supply. To calculate the power supply, divide the wattage of the strip by 0.8 - Our continued example would be 26.5W/0.8 = 33.12W minimum rated power supply
7. Looking at the available options choose a power supply equal or greater than the number above - In this example, looking from the available options, you would choose a 24V 60W 2.5A power supply
8. If you are still not certain, or need a second pair of eyes on your setup, we’re always available to help with this part! Contact us.
