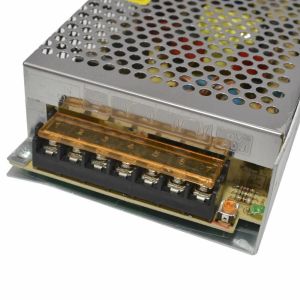

Indoor LED Power Supply 12V 30A With No Fan For Hotel/Office Led Lighting Strips And Modules
Constant Current LED Drivers vs. Constant Voltage LED Drivers
Constant current and Constant voltage drivers are both viable options for a power supply for LED light sources, what differs is the way in which they deliver the power. LED drivers are the driving force that provides and regulates the necessary power to make sure the LEDs operate in a safe and consistent manner. Understanding the difference between the two types can:
-
Aid in properly powering LEDs
-
Avoid serious damages to your LED investment
1).Specification
| Waterproof level: | IP20 for indoor use | Protections: | Short Circuit Overload Overvolt |
| Output Power: | 350W | Cooling: | Natural air convection |
| Output Type: | Single | Highlights: | High-end, High stability for big projects |
| Input Voltage: | 90Vac~132Vac ;180Vac~264Vac | Application: | LED Lighting, Display, Industrial Automation,Communication, Mining |
| Output Voltage: | 12V | AC Inrush Current: | 80A max |
| Output Frequency: | 50/60Hz | Efficiency: | >87% |
| Output Current: | 29.1A | Type: | Single output, constant votage, |
2).Input Characteristics
- Input Voltage: 90Vac~132Vac ;180Vac~264Vac, Switchable
- Input Frequency: 50/60Hz
- Input Current: 3.4A Max (full loaded at the lower limited of input voltage range)
- Inrush Current: 80 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.
- Ac Leakage Current: 0.75mA Max. At 240Vac input
3) Output Characteristics
1. Output Power
| Voltage | Min. Load | Rated Load | Peak@10mS | Rated Output Power |
| DC 12V | 0A | 29.1A | 400W | 350W |
2. Line Regulation
| Voltage | Min. Load | Rated Load | Line Regulation | Load Regulation |
| DC 12V | 0A | 29.1A | ±3% | ±5% |
3. Ripple and Noise
Under nominal voltage and nominal load,the ripple and noise are as follows when
measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
| Voltage | Ripple and Noise(Max.) |
| 12V DC | 240mV p-p |
4. Turn on delay time: 1 Second Max.at 220Vac input and output Max.load.
5.Rise time: 40 mS Max.at 220Vac input and output Max load.
6. Efficiency: 89% Min, At220Vac input voltage and full load calculation efficiency.
7. Overshoot: 8% Max.When power supply at turn or turn off.
4) Protection Functions:
1. Short circuit protection: auto recovered when short circuit faults remove.
2. Over current Protection: Output power limited
3. Over load protection: Output power limited
5) Test: Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.
6) Safety Requirement
1. Safety Standard: Safety: Design by IEC60950 standard.
2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.
7) EMI Requirement
Designed according to the following standards:
1. FCC class B rules
2. EN55022 class B rules
3. GB9254-1998,GB17625.1-2003
Advantage:
- Protections:short circuit/over load/over voltage/over temperature
- IP67 design for indoor or outdoor installation
- It can be used in dry ,wet and rainy environment Cooling by free air, high reliability
- 100% full load burn-in test
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ. Widely used in LED lighting and IT equipment
- IS 15885(Part2/Sec13)
- Compliance to worldwide safety regulation for led lightings.
FAQ
Q1:Are you factory or trading company?
A1:We are a professional manufacturer of power adapters and switching power supplies for more than 15 years in
ShenZhen,Guangdong,China.
Q2:Do you offer samples for testing?
A2:Yes, we can offer free samples for testing, samples time are 1-3 days. Freight cost offered by customers.
Q3:Do you have any certificates?
A3:Yes,of course, we have UL, CE, ROHS, ERP, BIS for India.
Q4:What is the MOQ?
A4: >1 for neutral package product, >500 for designed label, >1000 for designed color box.
OEM&ODM are accept.
Q5:What is the Lead time?
A5:1-3days for samples, 15 working days for order<500pcs, 30 working days for order>500pcs.
Q6: what is your warranty?
A6: 1 year, 2 years and 3 years for different series.
Kindly pls send more questions on line or send me email. Thanks a lot.
