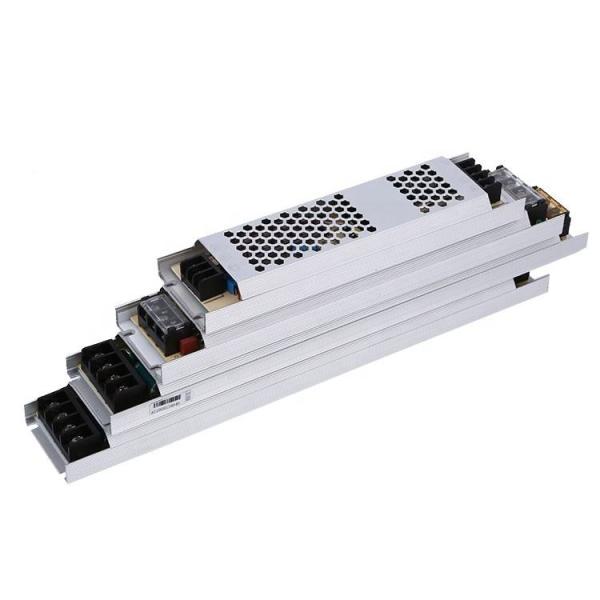

Slim Smps 12V 10A 12.5A Led Power Supply 120W 150W Led Strip Power
Wattage :
75W~300W
Features :
100~305VAC input range
Metal case, IP67/IP65 design for indoor or outdoor installations
Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150 BE-Type)
Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries
Suitable for LED street lighting and outdoor LED lighting
5 years warranty
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Lighting solutions service: | Lighting and circuitry design, Project Installation | Dimension: | 256*53*21mm |
| Output Power: | 101 - 200W | weight: | 277g |
| Output Type: | Single | Warranty(Year): | 2-Year |
| Input Voltage: | 85-265V | Application: | street light,outdoor lighting,LED light box |
| Output Frequency: | 47-63HZ | Surge Protection: | 1.5KV |
| Output Current: | 12.5A | Protections: | Short Circuit Overtemp Overload Overvolt |
| Working temperature: | -10~60℃ | Efficiency: | >82% |
Advantage:
- Protections:short circuit/over load/over voltage/over temperature
- IP67 design for indoor or outdoor installation
- It can be used in dry ,wet and rainy environment Cooling by free air, high reliability
- 100% full load burn-in test
- Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ. Widely used in LED lighting and IT equipment
- IS 15885(Part2/Sec13)
- Compliance to worldwide safety regulation for led lightings.
| DC Output | DC Voltage:12V |
| DC Current :12.5A |
| Ripple & Noise: 80MV |
| DC Adjustable Range: ±10% Rated Voltage |
| Voltage Tolerance: ±2.0% |
| Line Regulation: ±0.5% |
| Load Regulation: ±1% |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz |
| Efficiency:>82% |
| AC Current: 0.86/115V 0.4A/230V |
| AC Inrush Current: 20A/115V 40A/230V |
| Leakage Current< 0.5mA /240VAC |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery |
| Over-temp. : Shut down O/P voltage, Auto-recovery |
| Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing |
| Storage Temp.: -10~ +60C° |
| Storage Humidity: 10 ~ 95% RH |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Safety standards: CE,RoHS,FCC,ISO9001 |
FAQ
Q1:What is your MOQ of switch power?
A:Our MOQ is 1 piece.
Q2:How many year warranty of your Led driver?
A:Two years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in Donguan.
Q5:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q1:What is your MOQ of switch power?
A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.
