12V 24V 15A 25A 30A Rainproof Switching Power Supplies 300w 400w For Outdoor LED

Product Categories
Shenzhen Lstronic Electronics Co., Ltd.
Contact Now

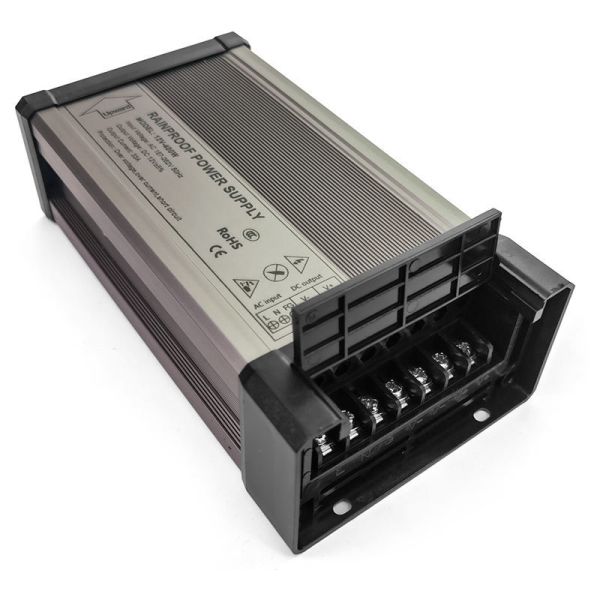

12V 24V 15A 25A 30A Rainproof Switching Power Supplies 300w 400w For Outdoor LED

  • 1
  • 2
  • 3

Brand Name : LSTECH

Certification : CE-EMC,RoHS,BIS

Place of Origin : China

MOQ : 1 pcs

Price : Negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20k pcs per week

Delivery Time : 5-8 working days

Packaging Details : IP67 Waterproof LED Driver 12V 100W Switching Power Packing details: 15pcs/carton; Carton Size: 42.5*24.8*17 CM, 13 KG

Product name : Rainproof Switching Power Supply

Output power : 101 - 200W,201 - 300W,60W,1 - 50W,51 - 100W

Output voltage : 12V, 24V

Output type : Single

Input voltage : 110V, 220V

Output frequency : 50/60Hz

Output current : 8.3A, 4.2A

Warranty : 3 Years

Application : LED display,Residential

Efficiency : 90%

Weight : 0.875 kg

Size : 207*66*44MM

Type : Constant Voltage Mode Power

Ip rate : IP67

Operating temperature : -20℃ to +60℃

Working relative humidity : 20%-90%Rh

Input Voltage : 100 ~ 277 VAC

Contact Now

12v 24v 15a 25a 30a Rainproof Switching Power Supply 300w 400w For Outdoor LED

Features:
* AC input range selectable by switch
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* Withstand 300vac surge input for 5 second
* Built-in constant current limiting circuit
* Low cost, high reliability
* Fixed switching frequency at 90KHz
* 2 years warranty

Specification

Output Power 400w OVER VOLTAGE Protection Yes
Output Voltage DC 12V OVER LOAD Protection Yes
Input Voltage AC 220V±5% OVER TEMP. Protection Yes
Frequency 47-60Hz WITHSTAND Voltage 2KVAC/Min
Efficiency ≥80% ISOLATION RESISTANCE ≥100m
RIPPLE&NOISE 100mVp-p Cooling By air
HOLD UP TIME 20ms(220VAC) Working Temp. -30~50℃
SETUP, RISE TIME 50ms(220VAC) Warranty 2 Years

Advantage:

  • Protections:short circuit/over load/over voltage/over temperature
  • IP67 design for indoor or outdoor installation
  • It can be used in dry, wet, and rainy environments Cooling by free air, high reliability
  • 100% full load burn-in test
  • Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ. Widely used in LED lighting and IT equipment
  • IS 15885(Part2/Sec13)
  • Compliance with worldwide safety regulations for led lightings.

Applications:

  • Using in the backlight of the light box, landscape layout, stage adornment, spray, blister word, etc.
  • For Advertisement Signs Backlighting and LED Module Channel Letters.

12V 24V 15A 25A 30A Rainproof Switching Power Supplies 300w 400w For Outdoor LED12V 24V 15A 25A 30A Rainproof Switching Power Supplies 300w 400w For Outdoor LED12V 24V 15A 25A 30A Rainproof Switching Power Supplies 300w 400w For Outdoor LED12V 24V 15A 25A 30A Rainproof Switching Power Supplies 300w 400w For Outdoor LED

FAQ

Q1. What's your lead time and shipment?
A1: 3-30 days which depends on the order items and quantity. We can ship the goods by express like DHL, UPS, Fedex etc. Or by air
and by sea with cargo company.

Q2. What's your MOQ?
A2: MOQ 10pcs for stock items; MOQ 100pcs for OEM order.

Q3. How about the Quality?
A3: We have the professional and experienced engineer team and strict QA and QC system. Repair rate under 3‰.

Q4. What is the payment you accept?
A4: T/T or Paypal. 50% deposit and 50% before shipment.

Q5. Do you accept OEM or ODM?
A6: Yes, we can custom the current, power, size or other special specifications as your requirement.
